Phono Input |
MM/MC (1 mVeff)
("A" suffix) model ONLY |
|
Phono Input
impedance |
47 Kohm |
|
LINE Input impedance |
10 Kohm |
|
frequency
response |
25Hz
- 20,000Hz +/- 0,3 dB (phono);
PASSIVE SUBSONIC FILTER - 2,5 dB @ 20 Hz (*)
10 Hz - 50 KHz (LINE) |
|
THD |
less than 0.2% (MM
or MC hi level input) |
|
Phono sensitivity |
2
mVolt for 0.8 Veff
output @ 1 KHz (54 dB) |
|
Tone Controls |
+6 / - 9 dB @30 Hz ; -5 /+5 @ 2200 Hz; +7 /-5 @ 20.000 Hz. Thru interstage RD transformers - NO VOLTAGE amplifying stages |
|
Output impedance |
1800
ohm or 600 ohms |
|
Max Output |
6 Vrms on 1800 ohm load (default). 3,2
Vrms on 600 ohm load. |
|
Amplification |
1, 7, 14 dB factory set |
|
S/N ratio |
95
dB
|
|
Power Consumption |
3
W |
|
Dimensions (W x D x H) |
390
x 245 x 83mm |
|
Weight |
5
Kg |
|
Finishing |
Bright MIRROR shine STAINLESS STEEL finishing |
|
NOTES |
3 inputs – Phono- CDP and AUX
(MODEL 3A ONLY) or 3 LINE INPUTS (MODEL 3)

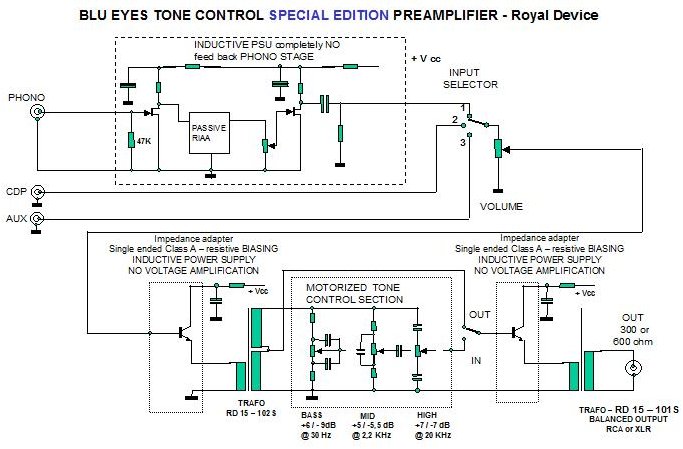

PHONO STAGE: PASSIVE RIAA
with CUSTOM made metalized polipropilene capacitors 2% - Internal power supplies completely separated for each channel and each

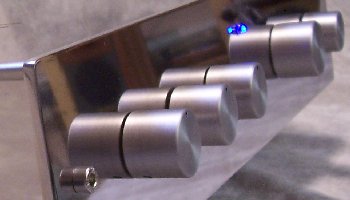

stage with 4 INDUCTIVE CELLS - External p.s.u. transformer. Full Aluminum KNOBS hand polishing and finishing
(*) disabled on
request. (#)
Modified on request.
|
