9 Watts - Stereo
Power Amplifier DUAL MONO layout
COMPLETELY NO FEED-BACK (EVEN LOCALLY)
SINGLE ENDED 300B DHT INDUCTIVE
PS AMPLIFIER

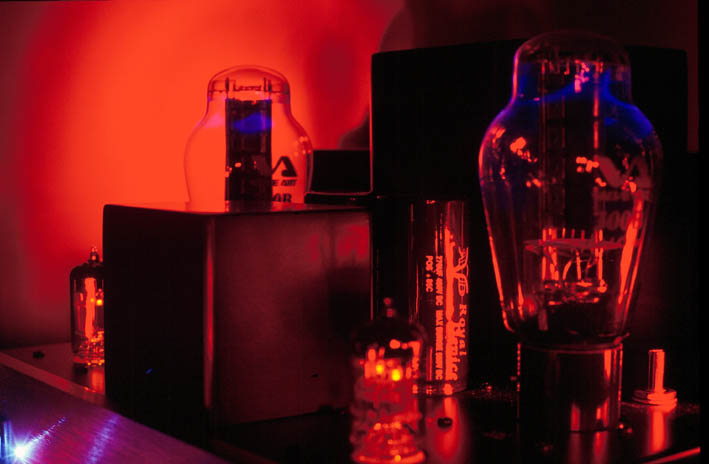

The
RD
300-B is a
9
Watts Stereo Power Amplifier DUAL MONO layout completely no
feedback (even locally) made by 2 Single Ended stages using the 300B DHT as
output power tube. The Royal Device design implements a pi-grec inductive power
supply and the filaments of the 300B are supplied with dc voltage at high
filtering (56,000 uF per filament) to suite a very low noise output. The 12 AX7
tube has been chosen for the high linearity for completely no feed back
application.
SOUNDSTAGE REVIEW
|
|
|
|
R.M.S. Power |
9 Watts continuous
per channel |
|
Frequency Response |
25Hz
to 20,000Hz (25 Hz -1 dB - 20.000 Hz -3
dB) |
|
Harmonic Distortion |
less than 1% at 1W |
|
Sensitivity |
800 mVolt
|
|
Tube Complement |
2 x ECC83/12AX7, 2 x 300B |
|
S/N Ratio |
-
89dB
|
|
Power Consumption |
110W |
|
Dimension(W x D x H) |
320 x 285 x 220mm |
|
Weight |
13.5Kg |
|
Chassis Finish |
Black with SILVER
10 mm aluminum front panel with external volume level control - Blue
power led |
|
Remarks |
RCA Socket, Speaker Post, Ext HUM
adjustment, NO Feed Back even
locally - DUAL MONO layout - One triode stage + 300 B stage, ONLY one
royal device audiocap coupling capacitor - Pi-grec filtering with
Inductive power supply and Royal Device/aliante HI-GRADE filtering capacitors. DC
power supply on 300B filaments (56,000 uFarad total filtering). |
|
|
| |
|
 |
|
|
|
