LOUDSPEAKER SYSTEMS

features no crossover on the 9 KHz full range woofer - 24dB hi-horn slope coherent phase towards woofer decay



Hit Counter



North American Exclusive distributor - www.ossaudio.com - O.S. Services Inc  (818) 632-0692 - Toluka Lake 91602-CA-USA

Legend 6 Diana
cherry or walnut SOLID WOOD side panels cherry or walnut SOLID WOOD side panels

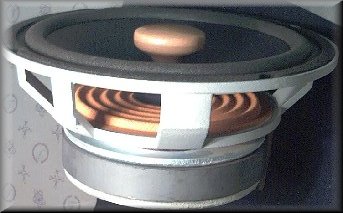

21 cm (8 ½ ") woofer

21 cm (8 ½ ") woofer  35-20,000 Hz
  97 dB   38-20,000 Hz 98 dB (100.5 dB "A" weighted ambience measurement)
Dimensions: 43 (H) x 29 (W) x 32 (D) cm Dimensions: 49 (H) x 31 (W) x 35 (D) cm

Erica MK II

Erica HORN

PAULA & MIRANDA HORN KITavailable

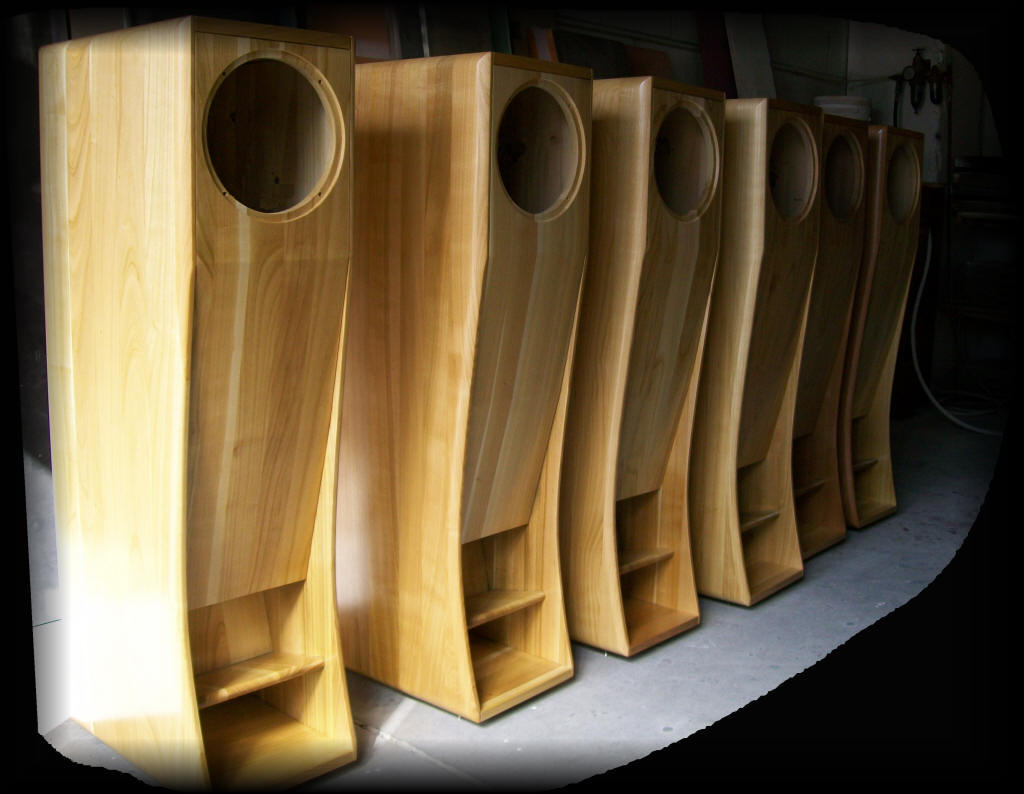

Woofer back horn loading - cherry or walnut bent finishing

Woofer back horn loading -

bass reflex system in multilayer birch with cherry or walnut dye finishing (STUDIO version)
13 cm (5 ¼") woofer   32-20,000 Hz

17 cm (6 3/4") woofer   25-20,000 Hz

 21 cm (8 ½ ") woofer   30-20,000 Hz

93.5 dB (95 dB "A" weighted ambience measurement) 96 dB 98.5 dB (101 dB "A" weighted ambience measurement)
Dimensions: 100 (H) x 17 (W) x 40 (D) cm Dimensions: 100 (H) x 23 (W) x 40 (D) cm Dimensions: 100 (H)x26(W)x40 (D) cm




LAURA STUDIO MKII version  with MIRANDA Horn

 LAURA MKII STANDARD version with MIRANDA HORN

LADY LAURA TOP MODEL with LADY HORN or MIRANDA HORN.

Cherry or walnut dye finishing

Cherry or walnut  bent finishing

 Cherry or walnut  complete SOLID WOOD cabinet

Woofer back horn loading

Woofer back horn loading

Woofer back horn loading

21 cm (8 ½ ") woofer  24-20,000 Hz

 21 cm (8 ½ ") woofer  24-20,000 Hz 21 cm (8 ½ ") woofer  24-20,000 Hz
98.5 dB (101 dB "A" weighted  ambience measurement) 98.5 dB (101 dB "A" weighted  ambience measurement) 99 dB (101.5 dB "A" weighted  ambience measurement)
Dimensions: 100 (H)x26(W)x40 (D) cm Dimensions: 100 (H)x26(W)x40 (D) cm Dimensions: 100 (H)x26(W)x40 (D) cm
