The Legend 6 is a 20 litres frontal load bass reflex/horn loudspeaker system fully handcrafted and manufactured in Italy with optimum design and high quality finishing suited for low power tube completely NO F.B. amplifiers. It features 97 dB  efficiency (38-20000 Hz) using the famous CUSTOM Royal Device 21 cm paper cone wide band woofer with frontal mechanical solid wood filter and the new 50 mm Miranda-CONSTANT DIRECTIVITY solid wood HI-Horn with custom loading for the SEAS soft dome tweeter. The hi-horn is FILTERED to the woofer by means of a 24 dB slope network that meets the woofer decay slope at 9 KHz.  A real complement to it, it is the use of the RD BI-WIRING CABLE. Components used are first class as the new generation Royal Device custom made polypropylene capacitors.

LEGEND 6 TOP MODEL: WOOFER paper cone and 50 mm constant directivity solid wood MIRANDA HORN

LEGEND 6 WH: WOOFER light fiberglasscone and 50 mm constant directivity solid wood MIRANDA HORN (upgradable to TOP MODEL) (out of production)

LEGEND 6 BASE: WOOFER light fiberglasscone and 120 mm exponential  HORN (upgradable to WH or TOP MODEL) (out of production)

• N. 1 - 21 cm (8.5 inches) Woofer with high quality paper cone on aluminum die-casting and front central mechanical solid wood filter

• N. 1 - 50 mm Miranda-CONSTANT DIRECTIVITY solid wood HI-Horn

• Mean Sensitivity: 97 dB / 2,83 Volt / 1 meter

• Frequency response at 2,83 Volt: 38- 20,000 Hz

• Woofer crossover type: No crossover

• Horn filter type: 24 dB octave slope phase coherent filter to woofer decay using Royal Device custom made capacitors

• Hi-horn Acoustic cross: 9 KHz

• Nominal impedance: 6 ohm

• Minimum impedance: 4.2 ohms from 120 to 200 Hz, above 4.2 ohms in the remaining audio range
• Power handling: to be connected to amplifiers up to 50 Watt rms per channel
• Minimum power suggested:
  • 0,5 Watt per channel with the use of RD BI-WIRING CABLE and NO-NEGATIVE FEEDBACK low power TRIODE TUBE amplifier or Royal Device amplifiers.

• Golden connectors for BI-amp or BI-wiring (RD BI-WIRING CABLE highly suggested)

• Dimensions: 430 (height) x 290 (Width) x 320 (Depth) mm

• Weight: 12 kg (26 lb.) each

• Cabinet hand-crafted from eight 1" thick solid walnut or cherry staves accomplished by MDF with patented anti-scratch varnish for a full Italian design.

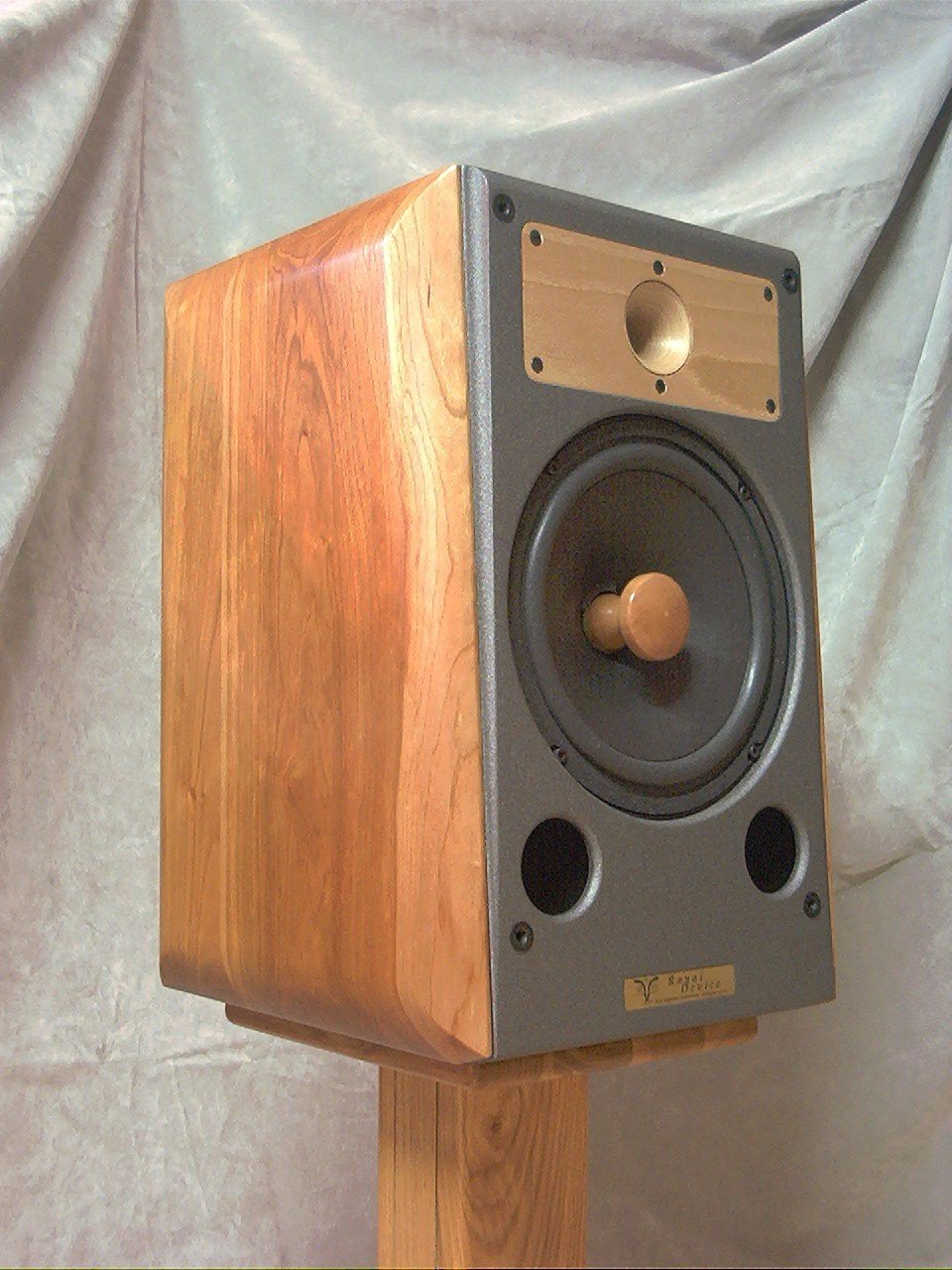

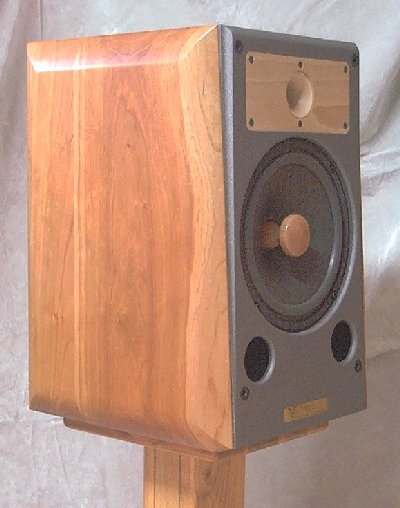

THE LEGEND 6 TOP MODEL

LEGEND 6 Wood Horn MODEL

(out of production)

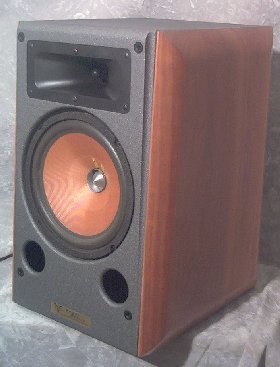

LEGEND 6 BASE MODEL

(out of production)
